| C123HAN01.1基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |

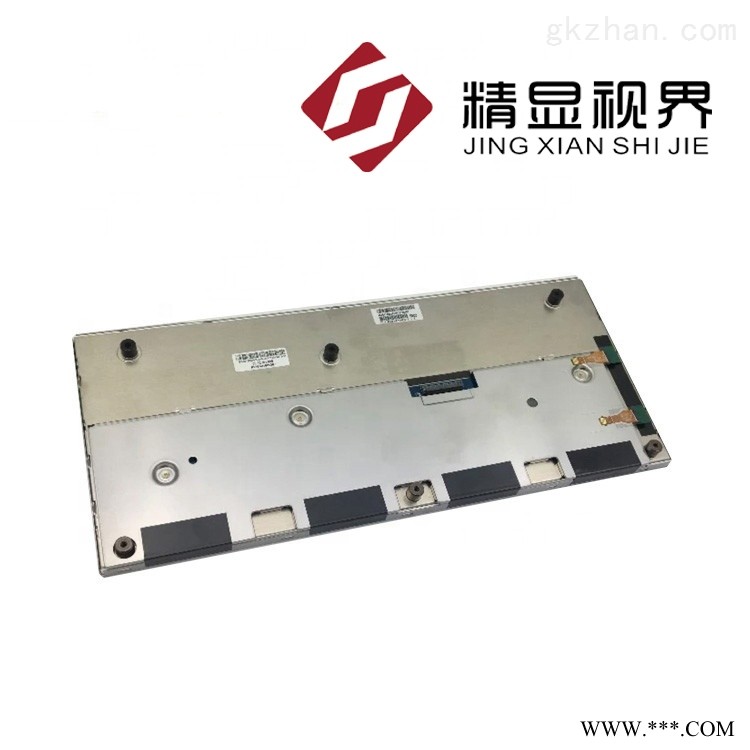

| 产品型号(MODEL) | C123HAN01.1 |
| 屏尺寸(Size) | 12.3" |
| 分辨率(Resolution) | 1920×720 |
| 显示比例(Display scale) | 8:3 |
| 点距(Pixel Pitch) | 0.05075×0.15225 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【车载显示】 |
| C123HAN01.1光电参数 | |
| 亮度(Luminance) | 700 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 16.7M |
| 响应时间(Response) | 12/13 (Typ.)(Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/80/80/80(上/下/左/右) |
| 接口类型(Interface) | LVDS |
| 驱屏电压(Drive-screen voltage) | 3.3V |
| C123HAN01.1结构参数 | |
| 工作温度(Operation Temperature) | 30 °C ~ 85 °C |
| 存储温度(Storage Temperature) | 40°C ~ 95°C |
| 面板重量(Weight) | 15kgs |
| 显示区域(Active Area) | 292.32(W)×109.62(H) mm |
| 外形尺寸(Outline) | 308.1(W)×134.86(H) mm |
| 背光类型(Backlight) | WLED |
| 背光寿命(Life Time of Lamp) | 10K Hours |
