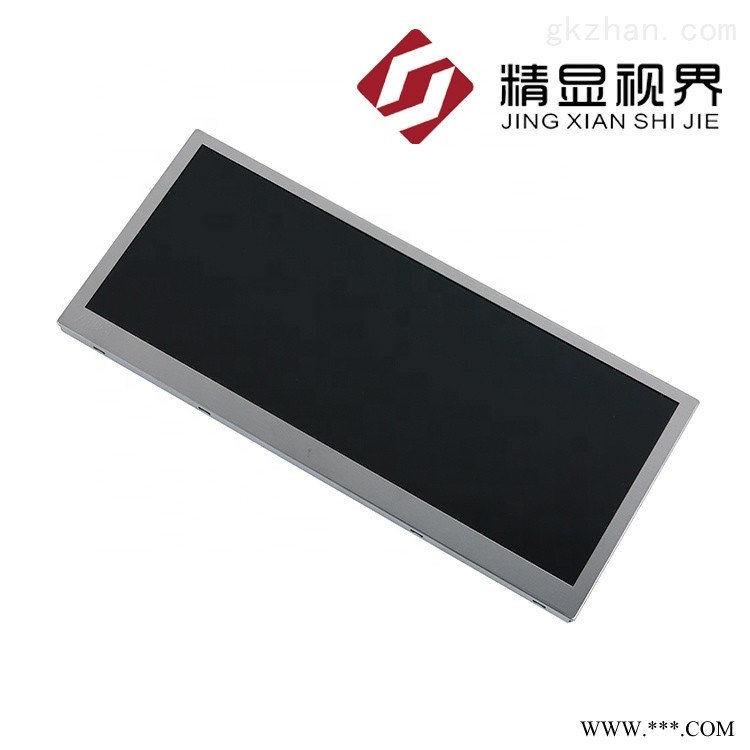

| C103VAN01.1基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | C103VAN01.1 |
| 屏尺寸(Size) | 10.3" |
| 分辨率(Resolution) | 1280×480 |
| 分辨率简称(Resolution Name) | WVGA |
| 显示比例(Display scale) | 8:3 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.0635×0.1905 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| 显著特征(Panel Features) | 【表面雾面】, 【广视角】, 【风景模式】, 【宽温】, 【高亮度】, 【白光LED背光】,【超宽屏】,【上/下,左/右翻转显示】, |
| C103VAN01.1光电参数 | |
| 显示模式(Display mode) | AHVA，常黑显示，透射式 |
| 亮度(Luminance) | 600 nits |
| 对比度(Contrast Ratio) | 800:1 |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 80%NTSC(CIE1931) |
| 响应时间(Response) | 40 (Max.)(Tr+Td) (ms) |
| 可视角度(Viewing Angle) | 80/80/80/80(上/下/左/右) |
| 视角(The Best View) | 全视角 |
| 白场色度(White Field Chroma) | Wx:0.318; Wy:0.321 色温6275K |
| 白场变动(White Field Dynamic) | 1.25 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | 翻转 (180°) |
| 信号类型大类(The kind of Singnal) | - |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLE-8PINS-AANNCCC |
| 驱屏电压(Drive-screen voltage) | 27/30.6V (Typ./Max.) |
| 面板输入电流(Input Current) | 80/85mA (Typ./Max.) |
| 信号接口类型(Kind of Singnal Interface) | FPC |
| 信号接口品牌(Brａnd of Singnal Interface) | - |
| 信号接口型号(Model of Singnal Interface) | - |
| 信号接口脚距(Pitch of Singnal Interface) | 1.0 mm |
| 信号接口脚数(Pin of Singnal Interface) | 8 pins |
| C103VAN01.1结构参数 | |
| 工作温度(Operation Temperature) | -30 °C ~ 85 °C |
| 工作湿度(Operation Humidity) | - |
| 存储温度(Storage Temperature) | -40°C ~ 95°C |
| 存储湿度(Storage Humidity) | - |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 243.84×91.44 mm |
| 可视区域(Display Area) | 245.9×95.2 mm |
| 外形尺寸(Outline) | 260.35×113.73 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 背光寿命(Life Time of Lamp) | 10K Hours |
| 内置灯管驱动器(Driver of Backlight) | WLED 驱动 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brａnd of Backlight Interface) | - |
| 背光接口型号(Model of Backlight Interface) | - |
| 背光接口数量(Quantity of Backlight Interface) | - |
| 背光接口脚距(Pitch of Backlight Interface) | - |
| 背光接口定义(Backlight Interface Define ) | - |
| C103VAN01.1包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 15 pcs |
| 包装箱尺寸(Size of the Box) | 600×353×210 mm (L×W×H) |
| 包装箱毛重(G.W. of the Box) | 12 Kgs |
