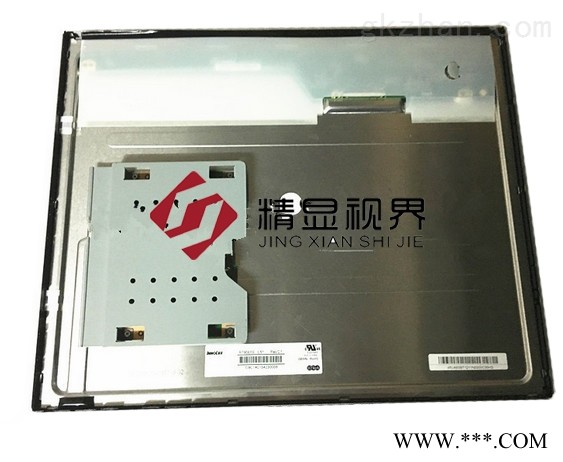

| R190EFE-L51 基本参数 | |
|---|---|
| 制造商(Productor) | 群创/Innolux |
| 产品型号(MODEL) | R190EFE-L51 |
| 屏尺寸(Size) | 19.0" |
| 分辨率(Resolution) | 1280×1024 |
| 分辨率简称(Resolution Name) | SXGA |
| 显示比例(Display scale) | 5:4 |
| 像素排列(Pixel Arrangement) | LCR垂直条状 |
| 点距(Pixel Pitch) | 0.098×0.294 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【医疗显示】, |
| 显著特征(Panel Features) | 【雾面】, 【广视角】, 【白光LED】, 【超高亮度】, 【自带LED驱动】, |
| R190EFE-L51光电参数 | |
| 显示模式(Display mode) | DD-IPS，常黑显示，透射式 |
| 亮度(Luminance) | 1400 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 灰度 |
| 响应时间(Response) | 15/15 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 85/85/85/85(上/下/左/右) |
| 视角(The Best View) | 上下左右对称 |
| 白场色度(White Field Chroma) | X:0.294; Y:0.309 |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | LVDS-30P2C8B-160H |
| 驱屏电压(Drive-screen voltage) | 12.0V |
| 面板输入电流(Input Current) | 0.58A |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brａnd of Singnal Interface) | FCN |
| 信号接口型号(Model of Singnal Interface) | MSAKT2407P30A |
| 信号接口脚距(Pitch of Singnal Interface) | 2 mm |
| 信号接口脚数(Pin of Singnal Interface) | 14 pins |
| R190EFE-L51结构参数 | |
| 工作温度(Operation Temperature) | 0 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | 雾面 (Haze 25%)，Hard coating (3H) |
| 显示区域(Active Area) | 376.32×301.06 mm |
| 可视区域(Display Area) | 380.3×305.0 |
| 外形尺寸(Outline) | 396.00× 324.00×20.10 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 4串 pcs |
| 灯管形状(Lamp Shape) | 4串 |
| 背光寿命(Life Time of Lamp) | 50K Hours |
| 单一灯管电压(Voltage of Lamp) | 38.4V |
| 单一灯管电流(Current of Lamp) | 105mA |
| 内置灯管驱动器(Driver of Backlight) | 含LED驱动模块 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brａnd of Backlight Interface) | FCN |
| 背光接口型号(Model of Backlight Interface) | JH2-D2-143N |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 2.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | LVDS-30P2C8B-160H |
| R190EFE-L51包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 11 pcs |
| 包装箱尺寸(Size of the Box) | 567×477×416 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 23.85 Kg |
