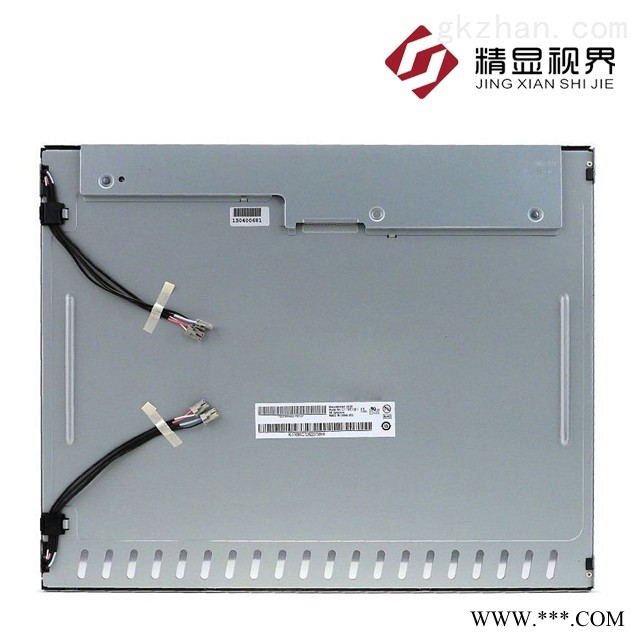

| G170EG01-V0 基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | G170EG01-V0 |
| 屏尺寸(Size) | 17.0" |
| 分辨率(Resolution) | 1280×1024 |
| 分辨率简称(Resolution Name) | SXGA |
| 显示比例(Display scale) | 5:4 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.088×0.264 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| 显著特征(Panel Features) | 【广色域】, 【雾面】, 【广视角】, |
| G170EG01-V0光电参数 | |
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 380 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 72%NTSC(CIE1931) |
| 响应时间(Response) | 3.5/1.5 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 80/80/85/85(上/下/左/右) |
| 白场色度(White Field Chroma) | X:0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.25 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLL-2PINS-HL |
| 驱屏电压(Drive-screen voltage) | 5.0V |
| 面板输入电流(Input Current) | 0.6A |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brａnd of Singnal Interface) | YEONHO |
| 信号接口型号(Model of Singnal Interface) | FI-XB30SSL-HF15 |
| 信号接口脚距(Pitch of Singnal Interface) | 3.5 mm |
| 信号接口数量(Quantity of Singnal Interface) | 1 pcs |
| 信号接口脚数(Pin of Singnal Interface) | 2 pins |
| G170EG01-V0结构参数 | |
| 工作温度(Operation Temperature) | 0 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 337.92×270.336 mm |
| 可视区域(Display Area) | 341.6×274.0 |
| 外形尺寸(Outline) | 358.50× 296.50×15.80 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源(顶部和底部) |
| 背光类型(Backlight) | CCFL |
| 灯管数量(Lamp Number) | 4 pcs |
| 灯管形状(Lamp Shape) | 直条 |
| 背光寿命(Life Time of Lamp) | 50K Hours |
| 单一灯管电压(Voltage of Lamp) | 640V |
| 单一灯管电流(Current of Lamp) | 7.5mA |
| 灯管工作频率(Working frequency of BL) | 40/60/80KHz （Min./Typ./Max.) |
| 灯管启动电压(Starting Voltage of Backlight ) | 1120/1350V （Min.）（Ta=+25/0℃) |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brａnd of Backlight Interface) | YEONHO |
| 背光接口型号(Model of Backlight Interface) | 35001HS-02L |
| 背光接口数量(Quantity of Backlight Interface) | 4 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 3.5 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLL-2PINS-HL |
| G170EG01-V0包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 8 pcs |
| 包装箱尺寸(Size of the Box) | 434×278×390 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 17.85 Kg |
| 开始量产时间(Date Begin Producing) | 2009,Q4 |
