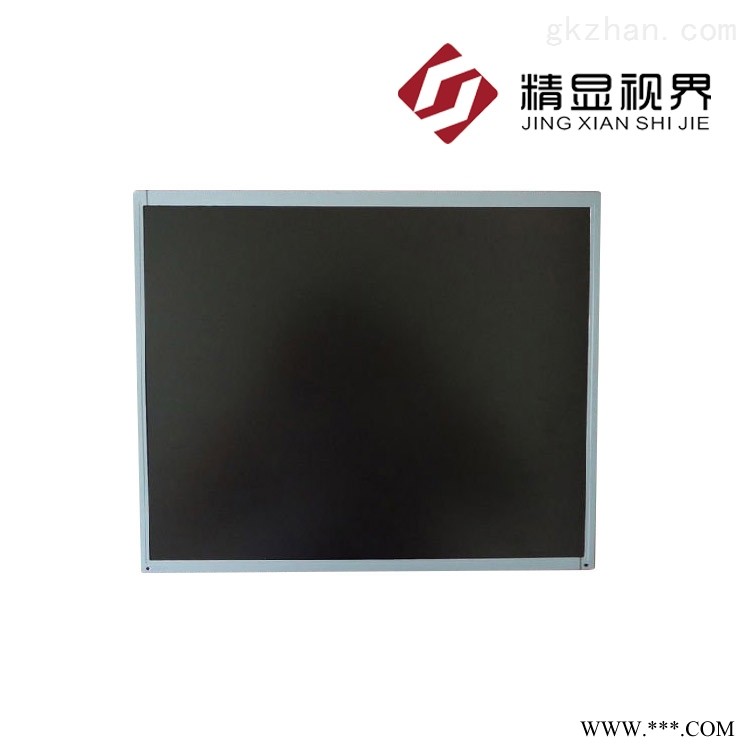

| G150XG03-V2 基本参数 | |
|---|---|
| 制造商(Productor) | 友达/AUO |
| 产品型号(MODEL) | G150XG03-V2 |
| 屏尺寸(Size) | 15.0" |
| 分辨率(Resolution) | 1024×768 |
| 分辨率简称(Resolution Name) | XGA |
| 显示比例(Display scale) | 4:3 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.099×0.297 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| 显著特征(Panel Features) | 【灰阶可选】, 【翻转显示】, 【雾面】, 【广视角】, 【宽温】, |
| G150XG03-V2光电参数 | |
| 显示模式(Display mode) | TN，常白显示，透射式 |
| 亮度(Luminance) | 250 nits |
| 对比度(Contrast Ratio) | 700:1 |
| 颜色(Color) | 262K/16.2M |
| 色彩饱和度(Color Saturation) | 65%NTSC(CIE1931) |
| 响应时间(Response) | 5.7/2.3 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 70/60/80/80(上/下/左/右) |
| 视角(The Best View) | 12 o'clock |
| 白场色度(White Field Chroma) | X;0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.25 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | 翻转 (180°) |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLL-3PINS-HNL |
| 驱屏电压(Drive-screen voltage) | 3.3V |
| 面板输入电流(Input Current) | 550mA |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brａnd of Singnal Interface) | JST |
| 信号接口型号(Model of Singnal Interface) | MSB240420E |
| 信号接口脚距(Pitch of Singnal Interface) | 4 mm |
| 信号接口脚数(Pin of Singnal Interface) | 3 pins |
| G150XG03-V2结构参数 | |
| 工作温度(Operation Temperature) | -30 °C ~ 85 °C |
| 工作湿度(Operation Humidity) | 8% ~ 90% |
| 存储温度(Storage Temperature) | -30°C ~ 85°C |
| 存储湿度(Storage Humidity) | 8% ~ 90% |
| 表面处理(Surface Technology) | 雾面，Hard coating (3H) |
| 显示区域(Active Area) | 304.128×228.096 mm |
| 可视区域(Display Area) | 307.4×231.3 |
| 外形尺寸(Outline) | 326.50× 253.50×12.00 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源(顶部和底部) |
| 背光类型(Backlight) | CCFL |
| 灯管数量(Lamp Number) | 2 pcs |
| 灯管形状(Lamp Shape) | 直条 |
| 背光寿命(Life Time of Lamp) | 50K Hours |
| 单一灯管电压(Voltage of Lamp) | 600V |
| 单一灯管电流(Current of Lamp) | 5.5mA |
| 灯管工作频率(Working frequency of BL) | 40/46/65KHz （Min./Typ./Max.) |
| 灯管启动电压(Starting Voltage of Backlight ) | 1030/1290/1320V （Max.）（Ta=+25/0/-30℃) |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brａnd of Backlight Interface) | JST |
| 背光接口型号(Model of Backlight Interface) | BDBR-03(4.0)V-S |
| 背光接口数量(Quantity of Backlight Interface) | 2 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 4.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLL-3PINS-HNL |
| G150XG03-V2包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 15 pcs |
| 包装箱尺寸(Size of the Box) | 375×430×360 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 20 Kg |
| 开始量产时间(Date Begin Producing) | 2009/1/9 |
