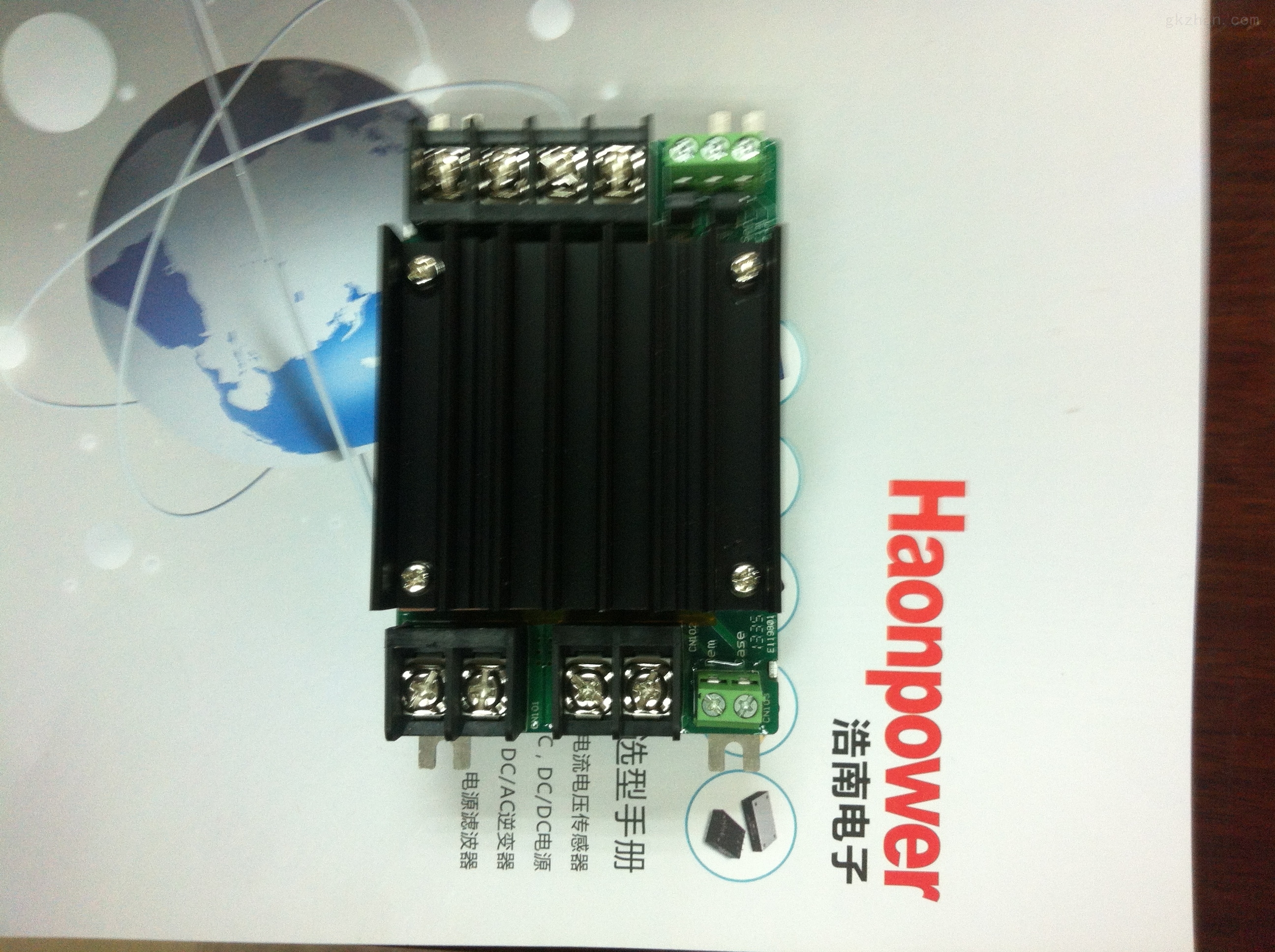

CQB150W系列CINCON底座式模块电源CQB150W-24S28-CM CQB150W-24S12-CM CQB150W-24S48N-CM CQB150W-24S24N-CM CQB150W-24S05-CM
4：1输入
DC-DC转换器
150W输出
效率达到92％
固定开关频率
4：1输入范围
规定的产出
远程开/关
低空载功耗
过温保护
过电压/电流保护
连续短路保护
四分之一砖块工业
CE标志会见2014/30 / EU
UL60950-1，EN60950-1和IEC60950-1
冲击振动MIL-STD-810F / EN61373 CQB150W系列底座式电源CQB150W-24S28-CM
Model List
Part Number | Input Voltage | Output Voltage | Output Current | No load Input Current | Efficiency (%) | I/O Isolation Voltage |
|---|---|---|---|---|---|---|
CQB150W-48S05-CM | 18~75V | 5V | 30A | 8mA | 92 | 2250VDC |
CQB150W-48S12-CM | 18~75V | 12V | 12.5A | 8mA | 91 | 2250VDC |
CQB150W-48S24-CM | 18~75V | 24V | 6.3A | 8mA | 90.5 | 2250VDC |
CQB150W-48S28-CM | 18~75V | 28V | 5.4A | 8mA | 90.5 | 2250VDC |
CQB150W-48S48-CM | 18~75V | 48V | 3.2A | 8mA | 91.5 | 2250VDC |
CQB150W-48S05N-CM | 18~75V | 5V | 30A | 8mA | 92 | 2250VDC |
CQB150W-48S12N-CM | 18~75V | 12V | 12.5A | 8mA | 91 | 2250VDC |
CQB150W-48S24N-CM | 18~75V | 24V | 6.3A | 8mA | 90.5 | 2250VDC |
CQB150W-48S28N-CM | 18~75V | 28V | 5.4A | 8mA | 90.5 | 2250VDC |
CQB150W-48S48N-CM | 18~75V | 48V | 3.2A | 8mA | 91.5 | 2250VDC |
CQB150W-24S05-CM | 9~36V | 5V | 30A | 10mA | 92 | 2250VDC |
CQB150W-24S12-CM | 9~36V | 12V | 12.5A | 10mA | 92 | 2250VDC |
CQB150W-24S24-CM | 9~36V | 24V | 6.3A | 10mA | 89.5 | 2250VDC |
CQB150W-24S28-CM | 9~36V | 28V | 5.4A | 10mA | 90 | 2250VDC |
CQB150W-24S48-CM | 9~36V | 48V | 3.2A | 10mA | 90.5 | 2250VDC |
CQB150W-24S05N-CM | 9~36V | 5V | 30A | 10mA | 92 | 2250VDC |
CQB150W-24S12N-CM | 9~36V | 12V | 12.5A | 10mA | 92 | 2250VDC |
CQB150W-24S24N-CM | 9~36V | 24V | 6.3A | 10mA | 89.5 | 2250VDC |
CQB150W-24S28N-CM | 9~36V | 28V | 5.4A | 10mA | 90 | 2250VDC |
CQB150W-24S48N-CM | 9~36V | 48V | 3.2A | 10mA | 90.5 | 2250VDC |
