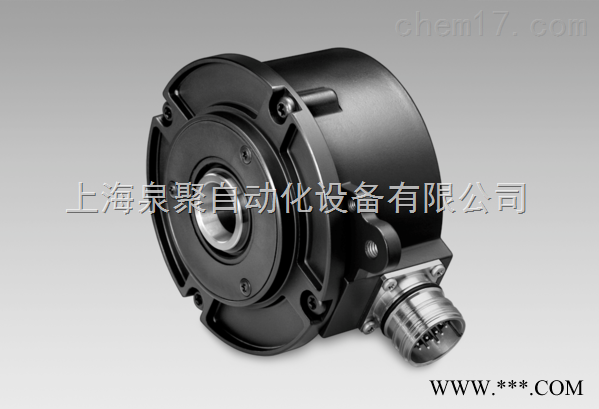

瑞士Baumer堡盟增量式编码器 HOG 9

价格:未填

发送询价

Technical dataTechnical data - electrical ratings

Voltage supply

9...30 VDC5 VDC ±5 %

Consumption w/o load

≤100 mA

Pulses per revolution

300 … 5000

Phase shift

90 ° ±20°

Scan ratio

40…60 %

Reference signal

Zero pulse, width 90°

Sensing method

Optical

Output frequency

≤120 kHz≤300 kHz (on request)

Output signals

K1, K2, K0 + inverted

Output stages

HTL-P (power linedriver)TTL/RS422

Interference immunity

EN 61000-6-2

Emitted interference

EN 61000-6-3

Approval

CEUL approval / E256710Technical data - mechanical design

Size (flange)

ø97 mm

Shaft type

ø12...16 mm (blind hollow shaft)ø17 mm (cone shaft 1:10)

Admitted shaft load

≤400 N axial≤500 N radial

Protection DIN EN 60529

IP 56

Operating speed

≤10000 rpm (mechanical)

Operating torque typ.

6 Ncm

Rotor moment of inertia

160 gcm²

Material

Housing: aluminium die-castShaft: stainless steel

Operating temperature

-30...+100 °C-25...+100 °C (>3072 pulses per revolution)

Resistance

IEC 60068-2-6 Vibration 17 g, 10-2000 HzIEC 60068-2-27 Shock 275 g, 6 ms

Corrosion protection

IEC 60068-2-52 Salt mistComplies to ISO 12944-5:1998 Protective paint systems (C4)

Explosion protection

II 3 G Ex nA IIC T4 Gc (gas)II 3 D Ex tc IIIB T135°C Dc (dust)

Connection

Flange connector M23, 12-pin

Weight approx.

700 g
